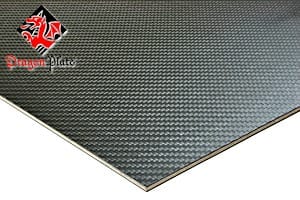

    Carbon Fiber Prepreg Birch Core

    DragonPlate Carbon Fiber Prepreg Birch Core Sheets are a light weight composite utilizing a birch core and carbon fiber skins. Birch is an excellent core material that offers both a high degree of toughness and machinability.

    Similar to our standard Birch core sheets, the prepreg sheets offer the additional benefits of a smooth satin finish on both sides of the panel, as well as the options for high modulus and ultra high modulus carbon fiber, which greatly increase the stiffness of the panel.

    The carbon fiber skins comprise 0/90 degree uni-directional with twill weave face sheets. Carbon fiber skin thickness is approximately 0.03 inches on each side of the birch core, adding approximately 0.06 inches (1.5mm) to the core thickness.

    This sheet size has a satin finish on both sides, with options for the face sheet on both sides. Also available in this sheet size is the option for higher modulus uni-directional fabrics.

    Since ultra-high modulus (UHM) carbon fiber material has certain export restrictions, customers are required to fill out a short form detailing the end use. Both the customer and application will need to be vetted before the product is able to ship. Please fill-out the PDF form and fax or email it back to us if you have ordered the UHM option.

    Please allow 10-15 days before this product ships.

    Sort by
    Display per page

    SKU

    DESCRIPTION

    SHEET SIZE

    SHEET THICKNESS

    PLY ORIENTATION

    PRICE
    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 24"
    FDPLHPBIRCH1MMS2424

    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 24"

    24" x 24"1mmWoven 0/90 and UD 0 and 90$360.62
    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 36"
    FDPLHPBIRCH1MM2436

    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 36"

    24" x 36"1mmWoven 0/90 and UD 0 and 90$450.91
    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 24"
    FDPLHPBIRCH2MM2424

    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 24"

    24" x 24"2mmWoven 0/90 and UD 0 and 90$368.02
    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 36"
    FDPLHPBIRCH2MM2436

    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 36"

    24" x 36"2mmWoven 0/90 and UD 0 and 90$462.00
    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 24"
    FDPLHPBIRCH3MM2424

    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 24"

    24" x 24"3mmWoven 0/90 and UD 0 and 90$375.41
    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 36"
    FDPLHPBIRCH3MM2436

    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 36"

    24" x 36"3mmWoven 0/90 and UD 0 and 90$473.09
    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 24"
    FDPLHPBIRCH4MM2424

    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 24"

    24" x 24"4mmWoven 0/90 and UD 0 and 90$382.80
    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 36"
    FDPLHPBIRCH4MM2436

    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 36"

    24" x 36"4mmWoven 0/90 and UD 0 and 90$484.18
    Sku:FDPLHPBIRCH1MMS2424
    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 24"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 24"

    Sheet Size:24" x 24"
    Sheet Thickness:1mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$360.62
    Sku:FDPLHPBIRCH1MM2436
    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 36"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 1mm x 24" x 36"

    Sheet Size:24" x 36"
    Sheet Thickness:1mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$450.91
    Sku:FDPLHPBIRCH2MM2424
    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 24"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 24"

    Sheet Size:24" x 24"
    Sheet Thickness:2mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$368.02
    Sku:FDPLHPBIRCH2MM2436
    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 36"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 2mm x 24" x 36"

    Sheet Size:24" x 36"
    Sheet Thickness:2mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$462.00
    Sku:FDPLHPBIRCH3MM2424
    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 24"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 24"

    Sheet Size:24" x 24"
    Sheet Thickness:3mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$375.41
    Sku:FDPLHPBIRCH3MM2436
    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 36"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 3mm x 24" x 36"

    Sheet Size:24" x 36"
    Sheet Thickness:3mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$473.09
    Sku:FDPLHPBIRCH4MM2424
    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 24"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 24"

    Sheet Size:24" x 24"
    Sheet Thickness:4mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$382.80
    Sku:FDPLHPBIRCH4MM2436
    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 36"
    Name:

    Carbon Fiber Prepreg Birch Core ~ 4mm x 24" x 36"

    Sheet Size:24" x 36"
    Sheet Thickness:4mm
    Ply Orientation:Woven 0/90 and UD 0 and 90
    Price:$484.18
