Click to Leave Message DragonPlate™ is the tradename for our unique
Engineered Carbon Fiber Composites.

  DragonPlate carbon fiber composites are strong,
light and beautiful.

  DragonPlate materials are designed for use in constructing high performance structures and are easy to cut, drill and assemble.

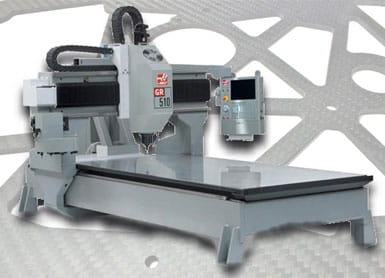

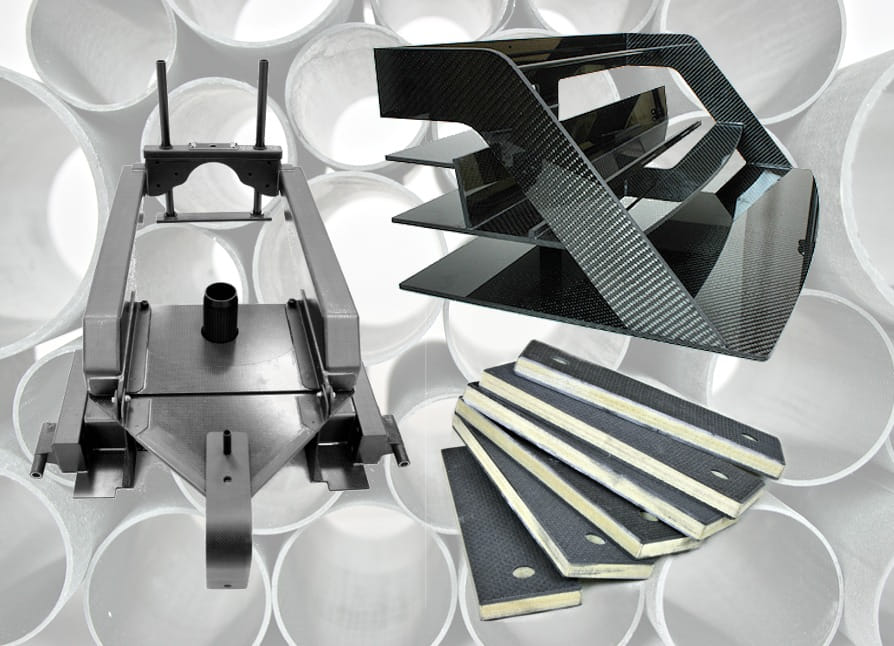

  DragonPlate also offers engineering, design and custom fabrication through our CNC Service for your unique carbon fiber part. Contact us with your special needs, we can help.
Carbon Fiber Divinycell Foam Core

NEW PRODUCT!
Carbon Fiber Divinycell Foam Core DragonPlate's carbon fiber Divinycell foam core utilizes Divinycell H100 high performance core. This is a medium density structural foam with very high strength to weight ratio. With very large strength properties, this carbon fiber foam core laminate is an excellent choice for heavier duty applications where lighter density foams struggle. Divinycell H100 is also an excellent damage tolerant foam and is ideal for impact applications. The lay-up design is quasi-isotropic, consisting of three layers of carbon fiber on each side of a Divinycell foam core center. Available in gloss, matte or texture on one side and texture on other side for bonding to other surfaces. For foam specifications, please refer to the official Divinycell Foam Data Sheet.

Carbon Fiber Airex Foam Core

NEW PRODUCT!
Carbon Fiber Airex Foam Core DragonPlate carbon fiber C70-40 Airex foam core is a unique closed cell, cross-linked polymer foam core carbon fiber sheet. This is a lightweight structural foam sheet that has good impact strength. While great for high strength applications which require a low panel weight, this is a carbon fiber foam core laminate that can resist crushing forces and supply an adequate mounting surface. The lay-up design is quasi-isotropic, consisting of three layers of carbon fiber on each side of a Airex foam core center. Available in gloss, matte or texture on one side and texture on other side for bonding to other surfaces. For foam specifications, please refer to the official Airex Data Sheet.

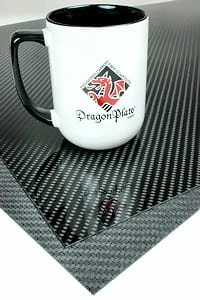

Carbon Fiber Economy Sheets

NEW PRODUCT!
Economy Carbon Fiber Sheet For less demanding non-cosmetic applications where you can live without the beautiful DragonPlate finish and the optimized material properties of a quasi-isotropic lay-up, we have introduced a new product called EconomyPlate. Our EconomyPlate offering is comprised of orthotropic (non quasi-isotropic) laminates utilizing a twill weave at 0°/90° orientation, while maintaining a symmetrical and balanced laminate. Instead of the standard gloss DragonPlate finish, a textured finish is supplied on both sides to keep the price low, while offering an excellent bonding surface. As with DragonPlate solid carbon fiber sheets, all laminates are composed entirely of a tough and rigid carbon reinforced epoxy matrix. Custom sizes and CNC machining are also available with EconomyPlate solid carbon fiber sheets.

Carbon Fiber Corner Gusset

NEW PRODUCT!
Carbon Fiber Corner Gusset Carbon fiber corner gussets allow for a simple method to bond together flat stock. This is a simple way to create an array of structures using DragonPlate carbon fiber sheets, eliminating the extra cost unnecessary tube or beam supports. Our corner gussets are already molded to 90 degree angles, which will save much time and energy in assembly and the creation of fixtures. Our carbon fiber corner gusset can also work well with our square tubing as an alternative to our three way corner gusset. These carbon fiber gussets are made with a texture by texture finish for an ideal bonding surface, utilizing a quasi-isotropic, symmetrical lay up schedule and a rigid epoxy matrix. Our corner gussets have been designed to work with our Scotchweld #2216 epoxy adhesive kit which is an ideal structural adhesive with extremely high shear and peel strengths.

Carbon Fiber C-Channel

NEW PRODUCT!
Carbon Fiber C-Channel Our carbon fiber c-channels utilize a 7 layer, quasi-isotropic laminate, giving them more torsional rigidity than I-beams or hat stiffeners. As with all of our engineered building materials, our carbon fiber c-channel has a very high strength to weight ratio, making it an excellent material for strengthening structures or frame construction. The uses for c-channels are endless, making them more versatile as a raw material than I-beams or hat stiffeners. Our c-channels sport a textured finish on both sides to provide an excellent bonding surface for any application.

Like all DragonPlate products, custom sizes and thicknesses are available despite our standard offering. Due to the wide variety of uses for a carbon fiber c-channel, we have developed proprietary universal tooling for our manufacturing process. This tooling allows for custom c-channels to be created with very minimal tooling costs. This tooling can currently produce c-channels from 2 to 7 inches wide, with leg lengths up to 1.75 inches.

Carbon Fiber Hat Stiffeners

NEW PRODUCT!
Carbon Fiber Hat Stiffener Do you have a design that needs increased panel stiffness? Are you looking to increase the structural performance of our carbon fiber sheets? Solve your problems with DragonPlate's carbon fiber hat stiffeners. They can easily be incorporated into existing designs to increase the structural performance by adding stiffness.

Our carbon fiber hat stiffeners are comprised of plain weave carbon fiber in both 0°/90° and ±45° orientations, with 0° uni-directional carbon fiber to add stiffness and strength along the length of the hat stiffener. To optimize the design, we have added the unidirectional only to the cap of the hat stiffener. This fiber placement lets us create a stronger and stiffer hat stiffener while minimizing hat stiffener weight. This design creates a high stiffness to weight ratio, and also creates a beam that is more torsionally rigid when bonded than an i-beam. The carbon fiber hat stiffener has a textured finish on the outside and on the flange surfaces to create an ideal bonding surface.

Carbon Fiber I-Beams

NEW PRODUCT!
Carbon Fiber I-BeamCombining the classic structural member with modern carbon fiber composites, DragonPlate now offers carbon fiber I-beams, which are an excellent light-weight solution for solving structural problems. These reinforcement carbon fiber I-beams are extremely strong in bending and shear loading. The combination of uni-directional and 0/90 degree plain weave on the top and bottom flanges give the I-beam its high bending strength. Utilizing a 45 degree orientation in the webbing allows the carbon fiber I-beam to have exceptional shear strength, as well as properly transmitting loads between the top and bottom flanges. These properties cannot be obtained as efficiently with pultruded I-beams, as all of the fibers run along the length of the I-beam. DragonPlate's I-beam construction allows for an extremely thin, lightweight I-beam to obtain the same effect as a thicker, heavier pultruded I-beam. Carbon fiber I-beams can offer similar properties in bending and shear as sandwich panels with the same thickness, but without the added weight from unnecessary core material. With a textured finish on the top and bottom, our carbon fiber I-beams are perfect for bonding to thin panels to create an extremely stiff and strong structure.

Carbon Fiber Square, Rectangular & Round Tubing

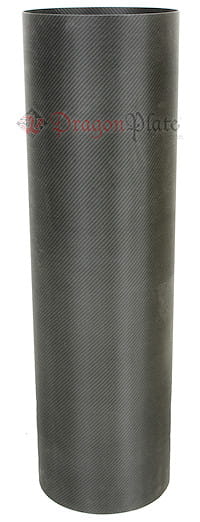

Carbon Fiber Large Tubes
Carbon Fiber Tube Splice
LIGHTWEIGHT AND STRONG!
This versatile tubing is comprised of Carbon Fiber Braid and Unidirectional Fabrics, ideal for building light weight frames and structures. Our Carbon Fiber large tubing has been engineered to be much stronger under torsional and side loading than pultruded tubing. Our carbon fiber tubing is also significantly lighter than pultruded tubing. Carbon fiber large tube as been designed so that the unidirectional layers are captured in a sandwich structure, eliminating longitudinal cracking and splitting. The finish on this product is different from our other product lines. These tubes show the texture of the carbon fiber braid with a wet shiny appearance.




NEW! TUBE SPLICES
Now you can create custom length square tubes! These splices join our carbon fiber large square and rectangular tubes to create any length you need. Made of multiple layers of carbon fiber, these splices fit on the inside of our tubes making near seamless tubes of any length!

Carbon Fiber Gussets for Square Tubing

Carbon Fiber GussetsNEW PRODUCT!
Now you can build super strong carbon fiber structures with our new gussets for our carbon fiber square tubes!

Carbon Fiber Gusset StructureGussets are widely used to reinforce tube structures but are commonly made from heavy materials. Our new gusset kits allow for an infinite combination of lightweight structures to be built with our square and rectangular tubing. Each gusset is a solid carbon fiber DragonPlate laminate. The laminate thickness is equal to our tubing wall thickness. The front face of the gusset has our low glare, scratch resistant matte finish, and the back has a peel ply finish that is ideal for bonding. Our gusset plates have been designed to work with our Scotchweld #2216 epoxy adhesive kit. This is an ideal structural adhesive with extremely high shear and peel strengths.

Each kit includes a set of pre-drilled gussets and enough blind rivets to help locate and hold the gusset plates to the tubes during bonding.

Volume discount does not apply.

Carbon Fiber Truss Structures

Carbon Fiber Truss StructuresBUILD A TRUSS!
Using DragonPlate 1" carbon fiber square tubes and gussets, we built a carbon fiber truss that is very light and incredibly strong. Now you can build light-weight carbon fiber structures only limited by your imagination. See how strong the truss is...

Carbon Fiber Truss

DragonPlate Carbon Fiber Sheets

DragonPlate Carbon Fiber SheetsSolid Carbon Fiber Sheets
For applications that require solid carbon fiber laminated sheets, DragonPlate offers solid carbon fiber sheets which utilize balanced and symmetrical lay-up schedules of 90 degree and 45 degree 3k plain weave fabric referred to as quasi-isotropic. All DragonPlate solid carbon panels are composed of a tough, and rigid carbon reinforced epoxy matrix without any core material.

Carbon Fiber Sheet ReflectionBirch Core Carbon Fiber Sheets
Our fabrication process produces a sandwich structure that is exceptionally flat, stable and lighter than a solid carbon fiber panel. DragonPlate Carbon Fiber Birch Core Laminate Sheets are currently available in thicknesses from .025 to .250 inches thick. Standard sizes range from 6 x 6 inches up to 24 x 48 inches. Custom sizes are available upon quotation.

Carbon Fiber Veneer Sheets Carbon Fiber Veneer
Many of our customers have been using our thinnest DragonPlate Carbon Fiber Laminate as a veneer. In an effort to provide a better material for this application, we developed a carbon fiber veneer that is very flexible while still maintaining the beautiful DragonPlate finish! Available in both plain weave and twill weave.

DragonPlate Veneer is capable of forming to a cylindrical diameter as small as 1 inch! It will easily wrap around a coffee mug! DragonPlate Carbon Fiber Veneer can be easily cut with shears or heavy scissors and the edges can be sanded smooth. Why settle for a simulated carbon fiber decal when you can now get the real thing!

Carbon Fiber Gloss/Matte

AVAILABLE IN SCRATCH RESISTANT MATTE FINISH!
Dragonplate veneer sheets are available in a glossy finish and also a scratch resistant matte finish (see picture to left for comparison). Our veneers come ready to install with contact cement or for quick and easy installation, we offer a veneer with self adhesive backing. Simply peel and stick! See how easy it is to install. View our Dashboard Veneer Installation How-to.

DragonPlate veneer is currently available in stock sizes up to 48 x 96 inches with custom sizes available upon quotation.

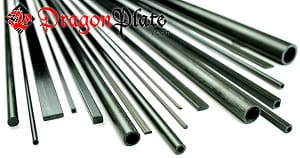

Small Pultruded Carbon Fiber Tube, Rod and Strip

DragonPlate Pultruded Carbon Fiber Pultruded in an epoxy resin, DragonPlate Carbon Fiber Tubes, Rods and Strips are exceptionally straight and rigid and are an ideal building material for frames, trusses and for use as reinforcing material. Because tubes, rods and strips are fundamental building blocks, they find great utility in the building of engineering and high performance structures, and work well in concert with other DragonPlate carbon fiber products.

DragonPlate Carbon Fiber Tubes Rods and Strips are easy to work. They can be cut with a band saw, coping saw, scroll saw, end mill, or dremmel tool. Because DragonPlate Carbon Fiber Tube, Rod and Strip are pultruded in an epoxy matrix they will bond readily with ScotchWeld 2216 epoxy resin.

DragonPlate Pultruded Carbon Fiber is available in various sizes and lengths.
